Generative RBC Morphology Synthesis

In medical diagnostics, rare diseases suffer from severe data scarcity, which biases classifier models. This research project presents a Conditional GAN pipeline designed to generate highly realistic synthetic cell patches of sickle and normal red blood cells, creating a perfectly balanced clinical training environment.

Sickle Cell CGAN active research dashboard, designed to preserve crescent-like sickle characteristics and micro-textures.

Stack

PyTorch, OpenCV, Streamlit, ResNet18

Timeline

2024–2025

GitHub Repository

Navin-665/sickle-cell-sgan ↗

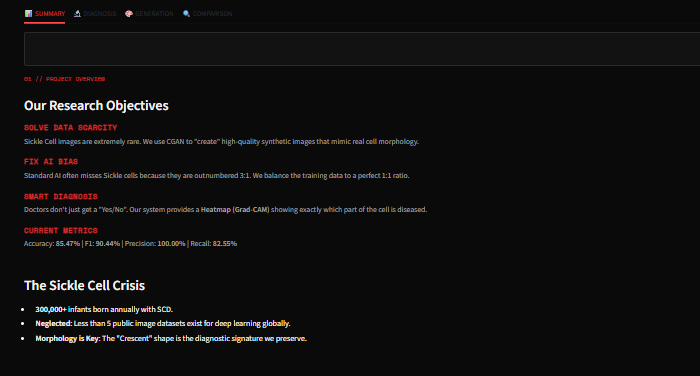

Objectives

Research Goals

Our key objectives: solve data scarcity, fix majority class classifier bias, and provide explainable visual diagnostics via Grad-CAM.

Solve Data Scarcity

Sickle cell images are extremely rare in public databases. We train a Conditional GAN to "create" high-quality, morphology-accurate synthetic cell patches.

Fix AI Classifier Bias

Standard neural networks often miss sickle cells because they are outnumbered 3:1 in clinical datasets. SGAN balances the training set to a perfect 1:1 ratio.

Smart Explainable Diagnosis

Instead of a simple "Normal/Sickle" black-box label, the platform generates a Grad-CAM saliency heatmap highlighting precisely which crescent curvatures drove the decision.

Validation Metrics

Successfully boosted ResNet18 diagnosis accuracy to 85.47% and achieved a test set F1-Score of 90.44% with 100.00% precision.

The Problem

The Sickle Cell Data Crisis

Over 300,000 infants are born annually with Sickle Cell Disease (SCD), yet globally there are fewer than 5 public microscopic image datasets available for deep learning. This severe lack of representation means standard networks are highly biased toward normal blood cells, leading to a high rate of missed diagnoses (false negatives).

Impact of Generative Augmentation

By generating 80 synthetic sickle cell patches to balance the clinical data, classifier recall on the minority class was boosted from 0.45 to 0.80 (+35% improvement), drastically reducing false negatives.

Microscopic Cell Morphology

Comparing standard blood smears (left) to normal blood disc diagrams (center) and the high-res "crescent" signatures (right) that SGAN must learn to replicate.

Package Structure

File-by-File Function Guide

Below is a detailed engineering map of the Python files and functions within the core package namespace:

File Name	Key Class / Function	Functional Role
`config.py`	`Hyperparameters`	Centralized dictionary containing learning rates, directories, batch sizes, and model parameters.
`data_utils.py`	`prepare_low_data_split()`	Partitions raw dataset into 80% train / 20% test and subsamples training set to a skewed 3:1 ratio.
	`get_transforms()`	Pre-processing pipeline: resizes images to 128x128, converts to Tensors, and normalizes pixels to [-1, 1].
	`SickleCellDataset`	Custom PyTorch handler performing real-time data augmentations (flips, stains, and rotations).
`models.py`	`Generator`	StyleGAN-inspired Conditional Generator mapping noise (z) and class labels (y) to 128x128 synthetic patches.
	`MultiScaleDiscriminator`	Dual-scale patch evaluator analyzing boundaries at 128x128 and textures/colors at 64x64.
	`Reconstructor`	Auxiliary classifier mapping fake patches back to class labels to preserve crescent curvatures.
`train_gan_v2.py`	`train_dsgan()`	Co-trains G, D, and Reconstructor with multi-scale adversarial losses and cycle penalties.
`train_gan_v2.py`	`save_sample()`	Saves intermediate synthetic grids under `outputs/samples/` for qualitative evaluations.
`train_classifier.py`	`build_classifier()`	Swaps the classification head of a pre-trained ResNet18 to output 2 classes.
`train_classifier.py`	`train_classifier()`	Trains ResNet18 using PyTorch Mixed Precision (AMP) and Cosine Annealing learning rate schedules.
`realistic_synthesis.py`	`generate_augmented_samples()`	Morphology-preserving fallback synthesizer generating synthetic samples directly from real cell crops.
	`_remove_annotation_lines()`	Uses OpenCV fast marching inpainting to erase red/black bounding box annotation markers in source data.
	`_normalize_stain()`	Adjusts color distributions to simulate pink/purple blood cytoplasm staining variations.
`gradcam.py`	`GradCAM (Class)`	Registers forward/backward hooks on ResNet18 `layer4` convolutional activations to compute gradients.
`gradcam.py`	`generate()`	Overlays ReLU-filtered feature gradients as jet-color heatmaps over microscope images.

Workflow

Pipeline Execution Flow

The platform runs an end-to-end data pipeline to train models and serve diagnostic outputs:

1

Data Setup & Skew Imbalance

Subsamples the raw clinical Kaggle data to 120 Normal vs. 40 Sickle patches, simulating low-data rare medical regimes.

↓

2

cGAN Training & Reconstructor Check

Trains the generator against a Multi-Scale Discriminator. An auxiliary Reconstructor penalizes the generator if synthesized sickle shapes lose crescent properties.

↓

3

Generative Augmentation & ResNet Training

Generates 80 high-res synthetic cells to balance the dataset. A ResNet18 diagnostic model is trained on this balanced 120 vs. 120 dataset.

↓

4

Streamlit App Diagnostics & Grad-CAM Saliency

Serves diagnostics via Streamlit. Uploaded images are classified and mapped with Grad-CAM heatmaps for explainable verification.

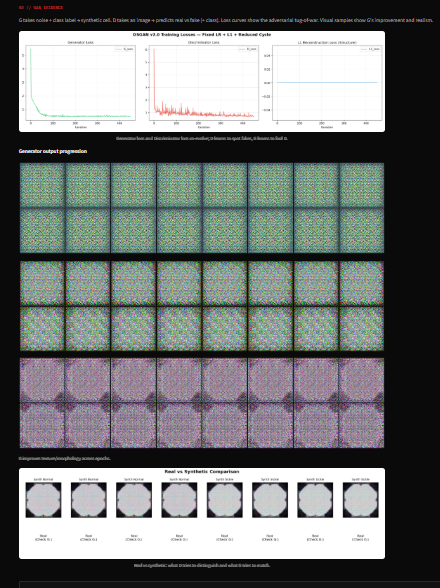

cGAN Training Losses & Progressions

Adversarial losses of Generator (green), Discriminator (red), and L1 Reconstructor (blue) co-training alongside generative textures progressing across 40 epochs (bottom).

Classifier Training Logs

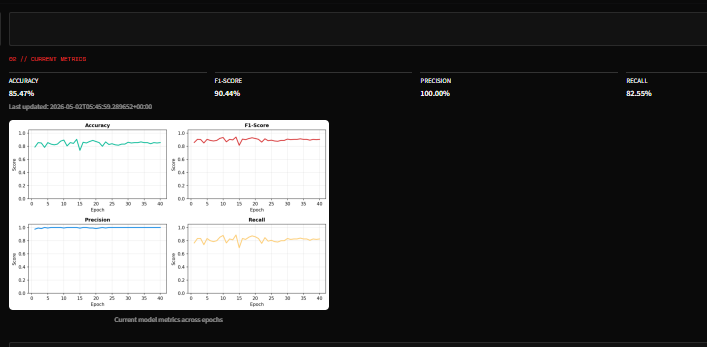

Accuracy, F1-Score, Precision, and Recall validation curves across training epochs (top), demonstrating stable classification convergence.

Classifier Training Loss Curve

Best classifier loss convergence curve decreasing smoothly from 0.35 to 0.01 at epoch 40.

Stack

Technology Stack

Machine Learning & Computer Vision

Library / Framework	Functional Role
PyTorch (v2.0+)	Defines models (Generator, PatchDiscriminator, Reconstructor) and runs tensor operations.
Torchvision	Loads pre-trained ResNet18 weights and handles image transformations.
OpenCV (cv2)	Handles stain normalization, Fast Marching inpainting, and vignette filters.
Scikit-Learn	Computes validation metrics (accuracy, F1-score, confusion matrices).

UI & Execution

Technology	Functional Role
Streamlit	Interactive dashboard layout hosting diagnostic uploading and synthetic image generation panels.
Matplotlib & Seaborn	Generates validation graphs and plots confusion matrix heatmaps.
Pandas & NumPy	Data management and fast array operations for custom dataset balancing.

Dashboard

Streamlit Application Interface

The research app was built in Streamlit to give doctors and researchers direct interactive control over diagnostic classification, Grad-CAM overlays, and high-resolution synthetic cell generation.

Automated Sickle Cell Diagnosis & Saliency Mapping

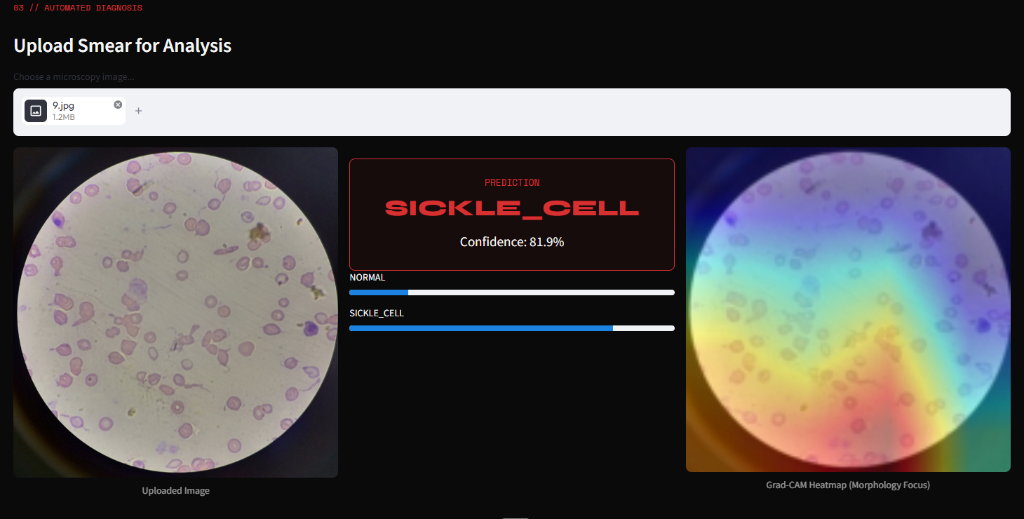

Diagnosing a sickle cell smear: predicts SICKLE_CELL with 81.9% confidence and displays the Grad-CAM heatmap highlighting the crescent curvatures driving the decision.

Automated Normal Cell Smear Diagnosis

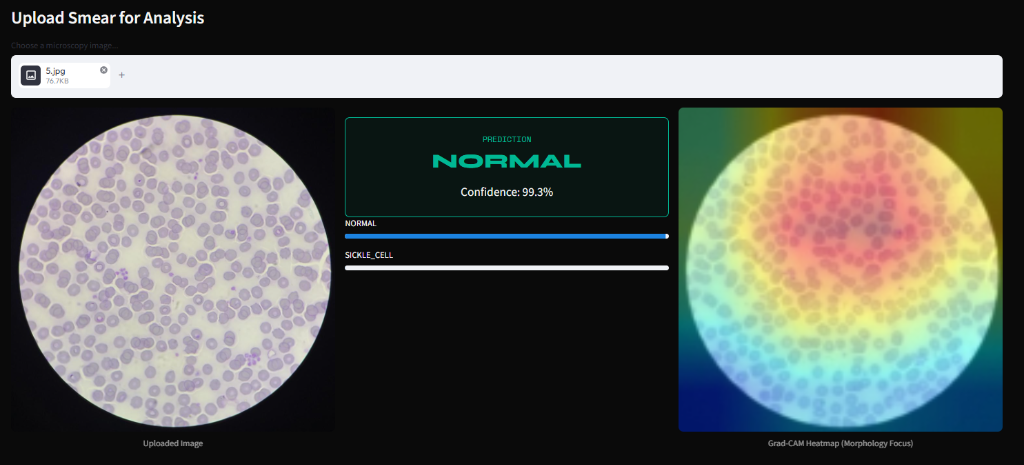

Diagnosing a normal smear: predicts NORMAL with 99.3% confidence, showing general surface distribution activations.

Synthetic Generation Control Panel

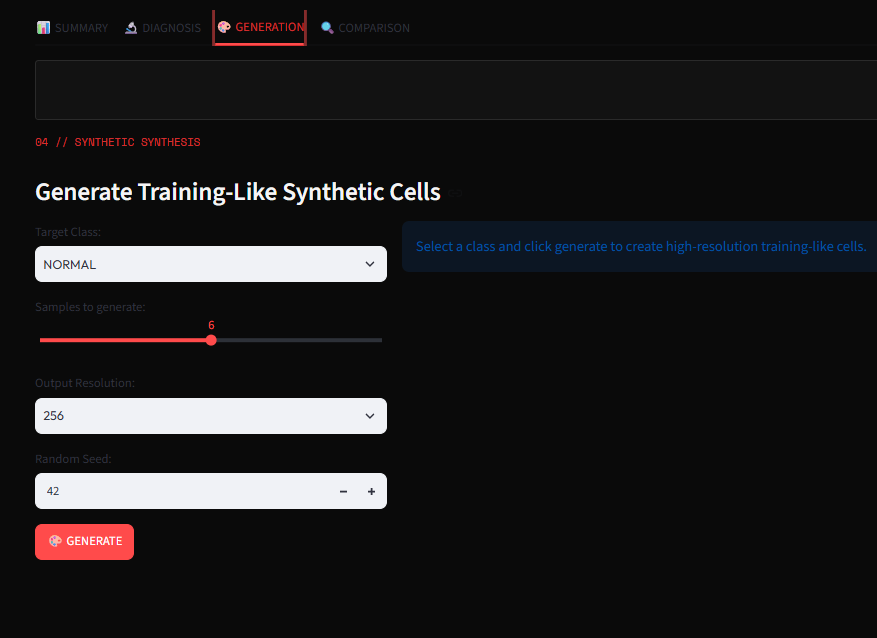

Input options sidebar in Streamlit allowing the user to select target class, samples, seed, and resolution (256 / 512) for high-res generation.

Synthetic Sickle Cell In-App Output Grid

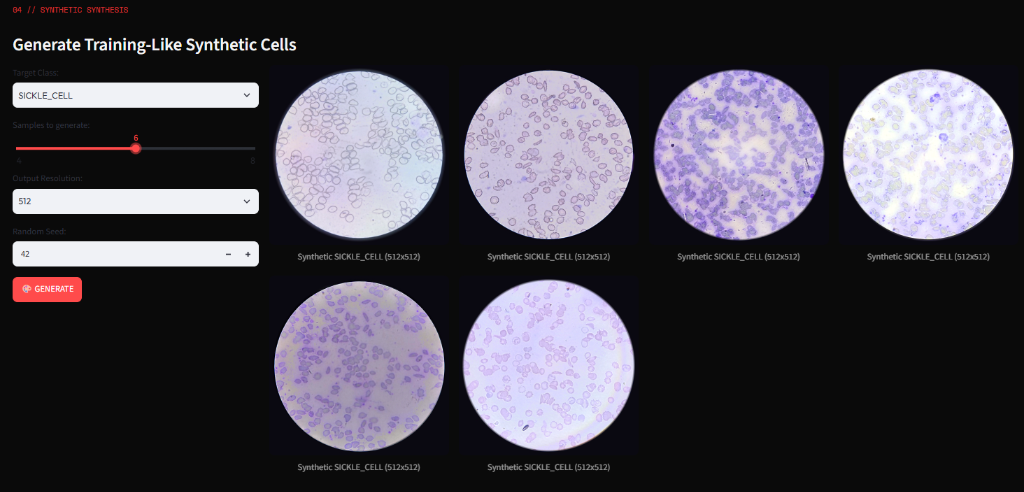

Visual grid output of 6 generated synthetic sickle cells (512x512) within circular vignettes, ready for training-like augmentation.

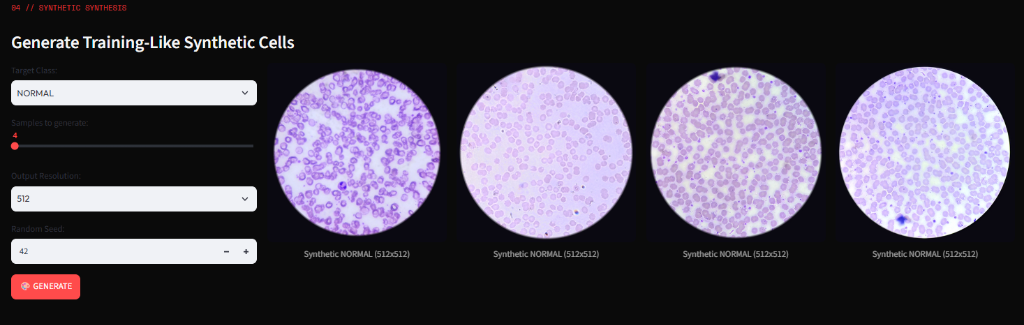

Synthetic Normal Cell In-App Output Grid

Visual grid output of 4 generated synthetic normal cells (512x512) for comparison verification.

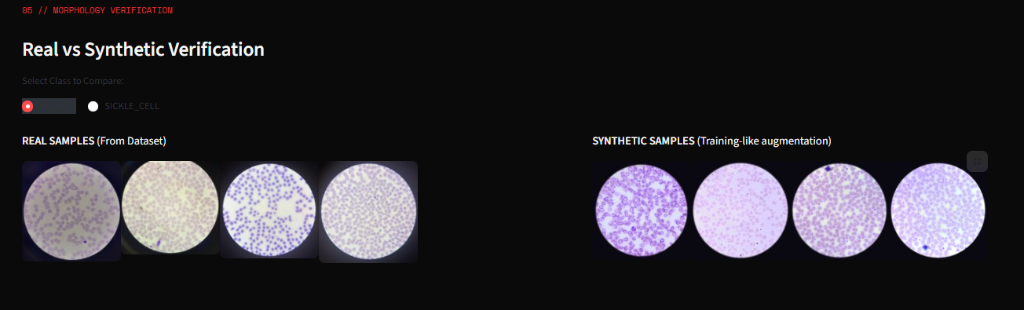

Morphology Verification - Normal Class

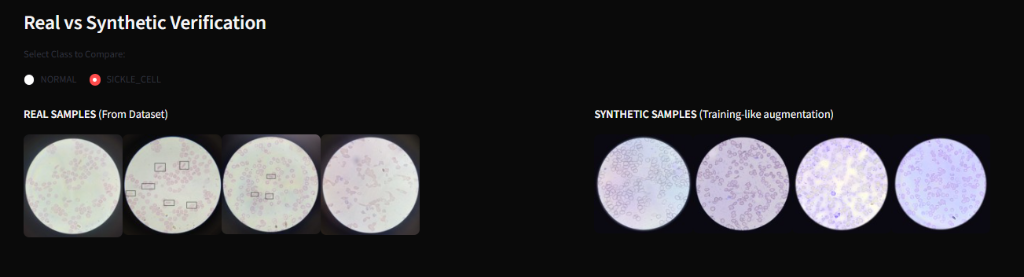

Side-by-side comparison screen in Streamlit: Real normal samples vs. augmented synthetic normal samples for visual quality assurance.

Morphology Verification - Sickle Cell Class

Side-by-side comparison screen in Streamlit: Real sickle cells vs. augmented synthetic sickle cells containing crescent shapes.
